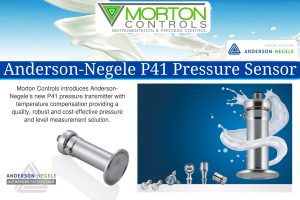

Anderson-Negele’s new P41 Pressure Sensor
Morton Controls introduces Anderson-Negele’s new P41 pressure sensor with temperature compensation providing a quality, robust and cost-effective pressure and level measurement solution.
Pressure sensors for level measurement
Anderson-Negele’s new P41 pressure sensor compliments the range of pressure sensors from Anderson-Negele being the D3, L3, LAR, DAN-HH, PFS and P41. With our comprehensive range of sensors based on various measuring methods, you can be assured of a measuring instrument, for process pressure and level measurement, that is precisely tailored to your application.
Robust, needs-based, cost-effective
Despite its compact appearance, Anderson-Negele’s new P41 pressure sensor is designed to meet the high demand of process requirements: Pressure up to 40 bar, overpressure resistant up to 100 bar, vacuum resistant. The measuring range can be individually adapted to the desired process pressures and a choice can be made between absolute and relative measuring cells. Compound measurement is also possible, that means that the relative measuring cell can also be used to measure the vacuum range.
The P41 is robust when it comes to temperatures: up to 125 °C as standard, up to 150 °C / 60 min for CIP/SIP cleaning, and even up to 250 °C permanently with optional cooling section. The entire sensor, including the diaphragm, is made of stainless steel for excellent cleanability and durability. The P41 is versatile in terms of process connections and offers, in addition to the hygienic thread “G1” with CLEANadapt, further connections according to DIN 3852 in “G1/2” and “G1”, as well as Tri-Clamp and Varivent.
The complete rugged process sensor system from a single source
Morton Controls in conjunction with Anderson-Negele offer an extensive range of sensors to make all fluid processing application efficient and reliable. With temperature, pressure, filling level, limit level, flow measurement and monitoring along with conductivity and turbidity. Measuring methods are adapted to the special requirements for the demands of process industry, due to their innovative products that are specifically designed for sanitary and hygienic sensitive areas. Solutions based and customer-oriented approach, Anderson-Negele has become synonymous with quality and efficiency in the food, beverage and life sciences industries.
We are pleased to bring Anderson-Negele’s new P41 pressure sensor to our clients.
Contact us today if you would like to find out more.
